Create a self-signed certificate for recording traffic in Leapwork Performance

This article explains how to generate a self-signed certificate bundle that Leapwork Performance can use to record HTTPS traffic. The scripts mirror the bundled Leapwork Performance Recorder certificate workflow and generate the PEM files required for upload.

Before you start

Make sure:

OpenSSL is installed and available in your terminal or PowerShell session.
You use an empty folder so the generated files are easy to find.

Install OpenSSL (if needed)

Windows

Download and install OpenSSL for Windows from Shining Light Productions:
https://slproweb.com/products/Win32OpenSSL.html
After installation, open a new PowerShell window and run:

openssl version

macOS

If OpenSSL is not already available:

Install Homebrew:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

Install OpenSSL:

brew install openssl

Verify:

openssl version

Generate the certificate on macOS

Use this script on macOS to create the certificate and key files that Leapwork Performance needs for HTTPS traffic recording.

Save the script below as generate-leapPerformance-certificate.sh in an empty folder.

#!/bin/bash
set -euo pipefail
SCRIPT_DIR="$(cd "$(dirname "$0")" && pwd)"
cd "$SCRIPT_DIR"
OPENSSL_BIN="$(command -v openssl)"
if [ -z "$OPENSSL_BIN" ]; then
  echo "OpenSSL is required but was not found in PATH."
  exit 1
fi
cat > cert.cnf <<'EOF'
[ req ]
default_bits       = 4096
prompt             = no
default_md         = sha256
distinguished_name = dn
req_extensions     = req_ext
[ dn ]
C  = US
O  = <Your organization name>
CN = <Leapwork Performance Recorder CA>
[ req_ext ]
basicConstraints = critical,CA:TRUE
keyUsage = critical, keyCertSign, cRLSign
subjectKeyIdentifier = hash
EOF
"$OPENSSL_BIN" req -x509 -newkey rsa:4096 -keyout mitm-key.pem -out mitm-cert.pem -days 365 -nodes -config cert.cnf -extensions req_ext
"$OPENSSL_BIN" pkcs8 -topk8 -inform PEM -in mitm-key.pem -out key_pkcs8.pem -nocrypt
cat mitm-cert.pem key_pkcs8.pem > bundle.pem
echo "Generated files:"
ls -1 mitm-cert.pem mitm-key.pem key_pkcs8.pem bundle.pem

Replace <Your organization name> and <Leapwork Performance Recorder CA> if needed.
Run:

chmod +x generate-leapPerformance-certificate.sh
./generate-leapPerformance-certificate.sh

Generate the certificate on Windows

Open PowerShell.

Save the script below as Generate-LeapPerformance.ps1 in an empty folder.

$ErrorActionPreference = 'Stop'
$ScriptDir = Split-Path -Parent $MyInvocation.MyCommand.Path
Set-Location $ScriptDir
$opensslCommand = Get-Command openssl.exe -ErrorAction SilentlyContinue
if (-not $opensslCommand) {
    $opensslCommand = Get-Command openssl -ErrorAction Stop
}
$openssl = $opensslCommand.Source
@'
[ req ]
default_bits       = 4096
prompt             = no
default_md         = sha256
distinguished_name = dn
req_extensions     = req_ext
[ dn ]
C  = US
O  = <Your organization name>
CN = <Leapwork Performance Recorder CA>
[ req_ext ]
basicConstraints = critical,CA:TRUE
keyUsage = critical, keyCertSign, cRLSign
subjectKeyIdentifier = hash
'@ | Set-Content -Path cert.cnf -Encoding ascii
& $openssl req -x509 -newkey rsa:4096 -keyout mitm-key.pem -out mitm-cert.pem -days 365 -nodes -config cert.cnf -extensions req_ext
& $openssl pkcs8 -topk8 -inform PEM -in mitm-key.pem -out key_pkcs8.pem -nocrypt
Get-Content .\mitm-cert.pem, .\key_pkcs8.pem | Set-Content -Path .\bundle.pem -Encoding ascii
Write-Host 'Generated files:'
Get-ChildItem .\mitm-cert.pem, .\mitm-key.pem, .\key_pkcs8.pem, .\bundle.pem

In the script, replace Your organization name with your company name.
Keep Leapwork Performance Recorder CA as the certificate name, or replace it with your preferred common name.

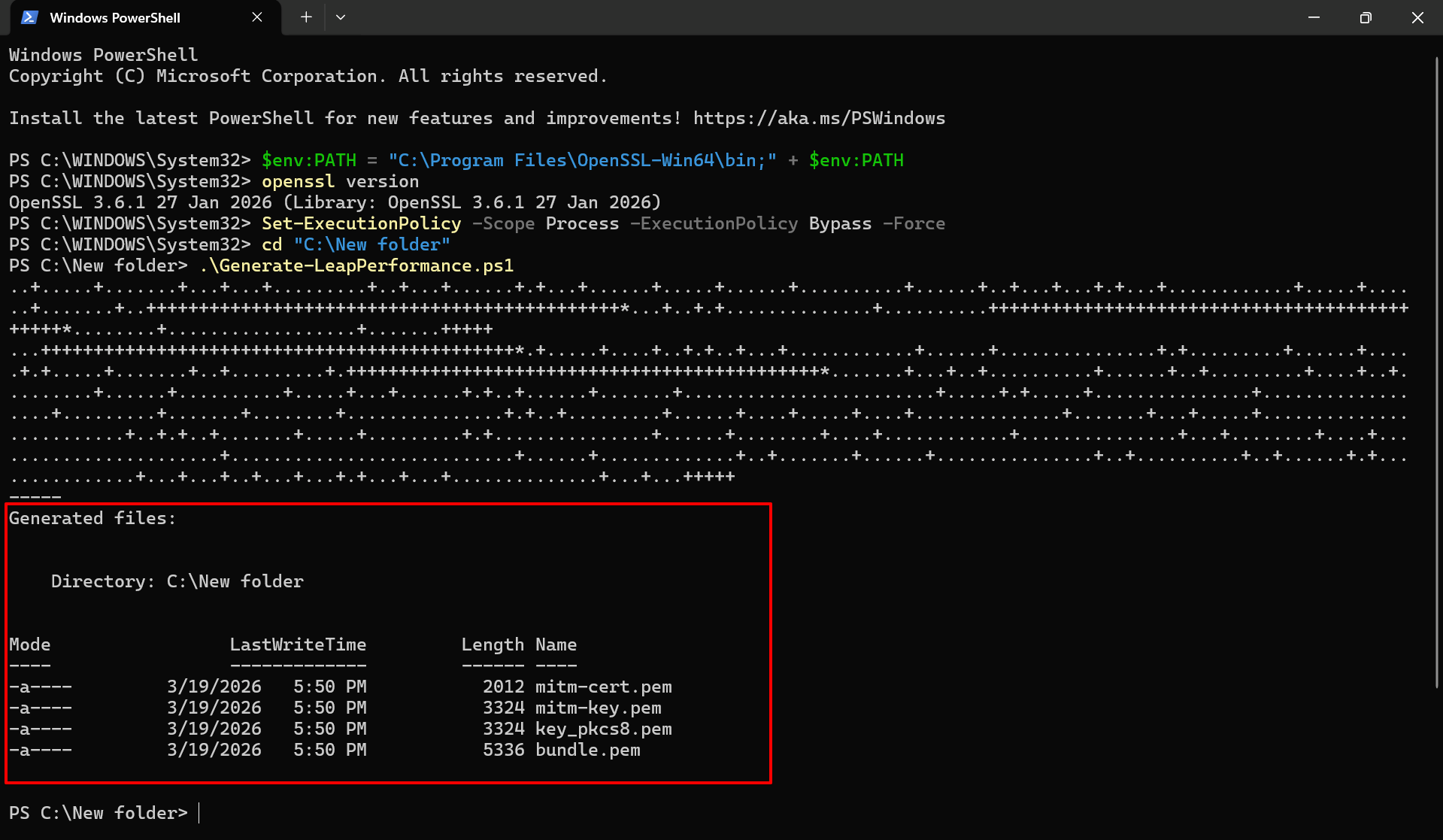

Run:

Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass -Force
.\Generate-LeapPerformance.ps1

Files generated

The scripts generate these files:

mitm-cert.pem: public certificate in PEM format.
mitm-key.pem: private key in PEM format.
key_pkcs8.pem: private key converted to PKCS#8 PEM format.
bundle.pem: combined PEM file that includes mitm-cert.pem and key_pkcs8.pem for upload.

Keep mitm-key.pem, key_pkcs8.pem, and bundle.pem secure.

Upload the certificate to Leapwork Performance

Sign in to the Leapwork Admin Portal.
Open the profile section.
Use the certificate upload option.
Upload bundle.pem.

Validate the generated files

To confirm that generation worked:

Check that mitm-cert.pem, mitm-key.pem, key_pkcs8.pem, and bundle.pem exists in the folder.
(Optional) Inspect the certificate:

openssl x509 -in mitm-cert.pem -noout -subject -issuer -dates

Troubleshooting common issues

1. Why do I see “openssl is not found”?

This means OpenSSL is not installed or not available in your system PATH.

Solution:

Install OpenSSL (see Install OpenSSL section).
Open a new terminal or PowerShell window.
Run openssl version to verify installation.
If the command still fails but OpenSSL is installed, add it temporarily to your PATH:
```
$env:PATH = "C:\Program Files\OpenSSL-Win64\bin;" + $env:PATH
openssl version
```
This change applies only to the current session.

2. Why is PowerShell blocking the script?

PowerShell may prevent scripts from running due to execution policy restrictions.

Solution:
Run the following command before executing the script:

Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass -Force

Then run the script again.

3. Why is `bundle.pem` missing?

This usually means one or more OpenSSL commands failed during execution.
