Microsoft Graph (Sharepoint) Connection

The SharePoint Connection feature allows Leapwork administrators to configure and authenticate a connection to a SharePoint site. This integration allows you to automatically read from and write to Excel files stored in SharePoint, directly within your automation workflows.

Add Connection

To add a connection:

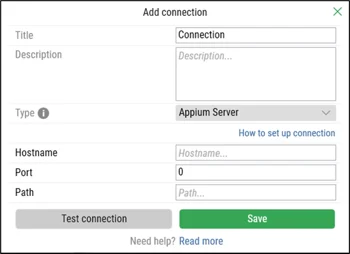

1. Click the Add button and the following pop-up appears:

In the Add Connection pop-up window:

1. Enter the title in the Title field. It should be unique.

2. Enter the description in the Description field.

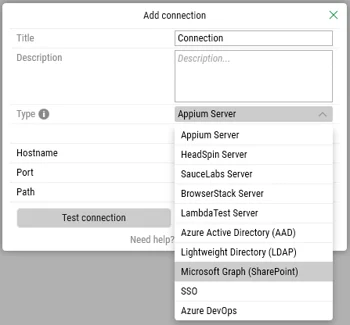

3. From the Type drop-down, select the Microsoft Graph (SharePoint) option:

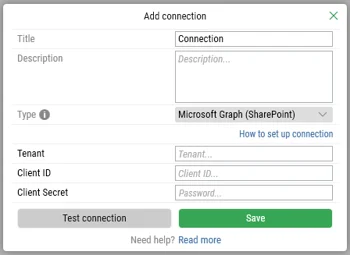

The following new fields appear:

• Enter the tenant in the Tenant field.

• Enter the client ID in the Client ID field.
  Note: To obtain the Client ID, you must register the SharePoint application in Azure Active Directory (AAD). Refer to our Knowledge Base guide on app registration for step-by-step instructions.

• Enter the client secret in the Password field.
  Note: To obtain the Password, you must register the SharePoint application in Azure Active Directory (AAD). Refer to our Knowledge Base guide on app registration for step-by-step instructions.

4. Click the Test Connection button to validate the credentials.

Leapwork will generate a temporary authentication token (valid for one hour).

The following events will happen based on connection status:

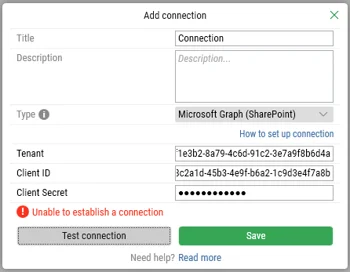

• If the connection failed, an error message will be displayed.

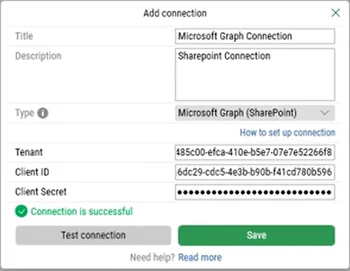

• If the connection is successful, a confirmation message will be displayed.

To modify or remove the connection, you can use the Edit or Delete buttons next to the Add button.
